The latent in the callback is not the latent the decoder wants

Denis Ineshin · 2026-09-10 · Read on GitHub

A research memo from mlx-taef: nine mflux image models, three VAE families, six in-loop tensor layouts, and why sharing a decoder does not mean sharing a latent contract

A live preview during a diffusion run is a small decoder applied to the tensor the sampler is still working on. mlx-taef ships that decoder for five mflux model families on Apple Silicon. Adding each family taught the same lesson from a different side: the tensor a generator hands its in-loop callback is not the tensor its VAE decodes. Between the two sit a packing, a sub-pixel transpose, a spatial convention, and a normalization, and all four live in the generator, not the decoder. Two models can decode through byte-identical VAE weights and still hand a callback different tensors, and two models that hand it the same shape can fold the sub-pixels into that shape in different orders. A wrong rank or channel count raises. A wrong fold order or a wrong affine map does not, and those are the mistakes this memo is about.

This memo is documentary. Every per-model claim is read from the mflux source at the public v.0.19.1 tag and from mlx-taef at v0.8.1; every mflux and mlx-taef source link below is pinned to one of those two tags, and links into other projects' code are pinned to a commit. No image was generated and nothing was benchmarked for this write-up. The quality numbers quoted from the mlx-taef changelog are source-reported, measured earlier on a 10-core Apple M1 Max with 32 GB of unified memory. Two file-level checks were run for this memo and are dated as such: the sha256 digests in section 1 were read from the Hugging Face Hub API on 2026-09-09, and the weight comparison in section 5 was re-run on the same day on the CPU with NumPy. The figure in section 3 is a synthetic tensor pushed through two reshape orders; it needs no weights, and its generator script is committed beside it.

1. The seductive fact: same VAE, same weights

Several of mflux's image models decode through one VAE class. The three families below cover all nine models in this memo:

The class is only half of the story. The other half is whether the trained weights are the same, and for the Flux2VAE group the Hub answers that with a hash. The table lists the vae/ safetensors file each model's Hub repository ships, as reported by the Hub API on 2026-09-09:

ERNIE-Image's VAE file is byte-identical to FLUX.2 Klein 4B's, which is what the ERNIE-Image technical report says in its introduction: "We adopt the FLUX.2 VAE … as our variational autoencoder". Lens ships the FLUX.2-dev file byte-for-byte, and mflux's Lens loader does not even use it: it loads the VAE from the Klein 4B repository by name. Ideogram 4's file has the same size as Klein 4B's to the byte and a different digest. Ideogram's own reference code calls its autoencoder module "Flux2 KL autoencoder", so the architecture is not in doubt, but whether the trained weights are Klein's stays an inference: the repository is gated, and the digest says the file is not the same bytes. The other families are looser still: Krea 2 reuses the QwenVAE class and its weight mapping but ships its own file (twice the size of Qwen-Image's, consistent with fp32 against bf16), and Z-Image reuses FLUX.1's normalization constants (scaling_factor 0.3611, shift_factor 0.1159) with weights from its own repository.

So a preview library has real reuse to harvest. madebyollin's README already lists the pairings: Z-Image with the FLUX.1 tiny decoder (TAEF1), Qwen-Image with the Wan 2.1 tiny decoder (taew2.1). mlx-taef previews Z-Image and Krea 2 that way with no new weights in either case, and its changelog records the measured agreement with each model's full VAE at SSIM 0.94 for Z-Image and 0.9678 for Krea 2. The trap is the inference that runs the other way: "same decoder, so the same unpack will do."

2. What the callback actually hands you

mflux calls every registered in-loop callback once per denoising step with the sampler's current tensor. The table lists that tensor for each model, read from the line where the generator calls ctx.in_loop, together with the two conventions a decoder needs to know and does not receive: where the sub-pixel unpack happens and how the values are normalized. h and w are the image height and width in pixels.

Read down any column and the "shared VAE" grouping from section 1 dissolves. The four Flux2VAE models arrive in three layouts (sequence-packed 128, channel-first 128 without a sequence axis, and sequence-packed 128 with a different channel order) and two normalization schemes (the VAE's own batch-norm buffers, or constants the generator carries and the VAE never sees). The three 16-channel FLUX.1-style models arrive as a packed sequence, as a plain NCHW tensor, and as a channels-first tensor with no batch axis and a singleton frame axis. The Wan 2.1 pair arrives packed for Qwen-Image and unpacked for Krea 2, so the same tiny decoder needs a sub-pixel unpack for one and a bare transpose for the other.

The spatial divisor is a smaller trap with the same shape. A callback that derives the latent grid from the generation config must divide by 16 for the packed models and by 8 for the rest; mlx-taef records the divisor per binding and derives the grid from mflux's config only when the binding is packed. A wrong divisor raises on its own, because the sequence length stops matching the grid, and so does a missing unpack (section 4). The permutation and normalization errors do not.

The table describes the producer. The consumer has expectations of its own, and they are not the full VAE's. Each tiny decoder was distilled against a particular input domain. TAEF1 and taew2.1 take the sampler-space latent as it is: madebyollin's README puts TAESD's latent scale factor at 1, and mlx-taef's Qwen-Image unpack deliberately applies no mean and std because the weights already account for them. TAEF2 is the open case: mlx-taef applies the VAE's batch-norm inverse before it, while madebyollin's own reference wrapper plugs the decoder in behind a default batch norm (mean 0, variance 1, so the inverse is the identity) and ComfyUI's TAEF2 decoder only unpatchifies. The repository has not measured which input domain the decoder was distilled on, and the two readings differ by a per-channel factor of about 1.8, so this is a value-space question the shape can never settle. A binding reconciles two things: the layout and value domain the generator emits, and the layout and value domain the decoder in hand was trained on. Applying the full VAE's per-channel mean and std before taew2.1 would be wrong, and whichever side of the TAEF2 question is wrong is wrong in the same silent way.

None of this is documented as a contract. Each fact is read from the generator's own loop and latent-creator source at a pinned version, and from the tiny decoder's training convention. That is the method this memo argues for, and section 6 comes back to it.

3. The sub-pixel order: two models, one decoder, two packings

FLUX.2 Klein and Ideogram 4 are the sharpest case. Both decode through Flux2VAE, both hand the callback a sequence-packed (1, seq, 128) tensor at one sixteenth of the image size, and both fold a 2×2 sub-pixel block into the 128-channel axis. They fold it in different orders.

FLUX.2 packs channel-major. Its patchify_latents reshapes the 32-channel latent to (B, 32, H/2, 2, W/2, 2), transposes to (B, 32, 2, 2, H/2, W/2) and folds the 32, 2, 2 axes into one, so packed channel k holds latent channel c at sub-pixel row py and column px with

k = 4·c + 2·py + px          (FLUX.2, ERNIE-Image, FLUX.1 and Qwen-Image alike)

This is the convention of the FLUX.2 reference autoencoder, whose encoder rearranges c (i pi) (j pj) into (c pi pj) i j, channel outermost. Flux2VAE._unpatchify_latents inverts exactly that, and FLUX.1's pack_latents uses the same convention for its 64 channels. Ideogram 4 packs sub-pixel-major. Its unpack_latents reshapes the packed axis as (B, gh, gw, 2, 2, 32) and transposes to (B, 32, gh, 2, gw, 2), which means

k = 64·py + 32·px + c        (Ideogram 4)

and matches Ideogram's own reference pipeline, which mflux mirrors.

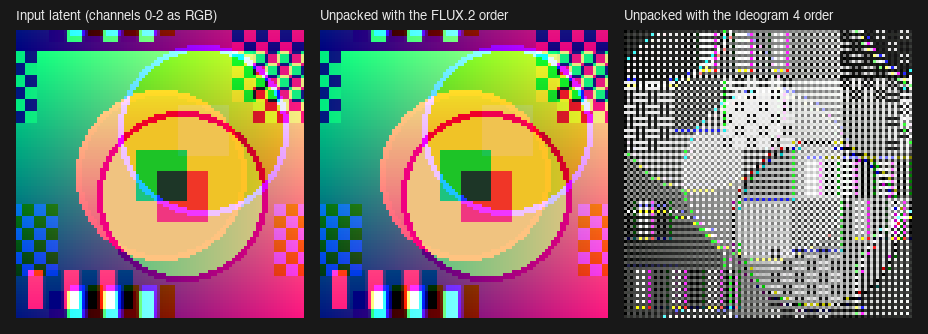

Apply the Ideogram order to a FLUX.2-packed tensor and every output value comes from a real input value, just the wrong one. Output channel 0 becomes a 2×2 interleave of input channels 0, 8, 16 and 24, each sampled at its top-left sub-pixel; output channel c′ in general draws from input channels ⌊c′/4⌋ + {0, 8, 16, 24}, with the sampled sub-pixel cycling through the four positions as c′ counts up. The figure shows it on a synthetic 32-channel latent whose first three channels carry a test card. The left panel is the input, the middle panel is the input packed by mflux's FLUX.2 functions and unpacked by Flux2VAE._unpatchify_latents (bit-exact with the input), and the right panel is the same packed tensor unpacked with the Ideogram reshape and transpose:

The two orders disagree even before the normalization does, and the normalization disagrees too: Ideogram's 128 shift and scale constants are baked into its latent creator and applied before the unpack, while FLUX.2 de-normalizes with the VAE's batch-norm buffers. These are not the same numbers kept in two places. Against the batch-norm statistics stored in the Klein 4B VAE file, Ideogram's shift constants differ by up to 0.43 and its scale constants by up to 16% (compared on 2026-09-09; Ideogram's own VAE file could not be read for the same comparison, since its repository is gated). Diffusers' Ideogram 4 pipeline reads shift and scale from its VAE file's batch-norm buffers rather than from constants, so whether the two implementations agree depends on what that gated file carries. A preview built by borrowing FLUX.2's unpack for Ideogram would apply the wrong affine map to the wrong channel order and decode the result through weights that are, at best, FLUX.2's. Nothing in that path can raise.

mlx-taef does not ship an Ideogram 4 preview. The scramble above is a prediction from the two source files, made concrete with a synthetic tensor, not a captured Ideogram frame; the point of the figure is that the prediction needs no weights to check.

4. Which failures here are silent

Each convention in section 2 has a failure mode. The ones that change a tensor's rank or channel count raise. The ones that keep the shape and permute or rescale the values do not, and those are the ones a shape check cannot see.

The normalization fails quietly. FLUX.2's in-loop tensor is batch-norm-normalized with statistics that live in the VAE. mlx-taef reads them off the model instance when the caller passes one, and falls back to identity otherwise, exposing which path won as resolved_bn. The repository documents the identity path as a degradation, structurally right with shifted colours, though that description was never measured against the auto path, and section 2 notes that other TAEF2 integrations take the identity path on purpose. Before the auto-extraction existed that was the default behaviour, and the manual-verification recipe still lists it as the third of three precedence levels because a caller without the model handy will hit it. The same family of error reaches upstream code: a Diffusers review of the ERNIE-Image pipeline (issue 13577, closed 2026-05-06) found it de-normalizing with a hard-coded epsilon of 1e-5 while the VAE's configured value was 1e-4, a value-space drift no shape check would report, and mlx-taef had to forward the VAE's actual epsilon into its own unpack in v0.5.0 for the same reason.

A missing unpack fails loudly, which is the useful contrast. mlx-taef's first FLUX.1 preview fed the packed (1, seq, 64) tensor straight to the decoder because a guard that looked for a 16-channel axis never matched on the packed shape and let the tensor fall through. That tensor has the wrong rank, and the decoder's first convolution rejects it, so the preview did not come out wrong; it did not come out at all. The changelog's "wrong previews" is loose wording for a broken feature. It shipped that way from the first release on 2026-05-13 until v0.3.0 on 2026-06-06, and the fix came with the test described in section 6. A structural error is caught by the first layer that touches the tensor. A value error is caught by nothing.

The transpose fails quietly: section 3's scramble is a plausible image with no exception.

The layout family is the one case with a guard. Hand Z-Image's (16, 1, h, w) tensor to a callback that expects (1, 16, h, w) and the channel axis becomes the batch axis. mlx-taef rejects this by checking the exact rank and leading dimensions, which is a check written after the fact, not a property of the tensor.

The repository's own verification document states the limit plainly: automated tests use a fake-shaped latent and cannot catch value-space drift. A shape test proves the plumbing is connected. It does not prove the water is going the right way. The same distinction, between a test that can pass on structure alone and a test that constrains values, is the subject of a companion memo from the sibling library, Why byte-exact parity is a poor MLX integration oracle.

5. The second silent trap: weight mirrors are not the weights

The latent contract has a twin on the weights side. mlx-taef's Qwen-Image and Krea 2 previews use madebyollin's taew2.1 tiny decoder, whose canonical weights are published on GitHub only. A Hugging Face repository, lightx2v/Autoencoders, carries a file with the same name. On 2026-06-23, while the Qwen-Image port was being built, the two were compared and the mirror was rejected. The comparison was repeated for this memo on 2026-09-09:

Same file size to the byte, same key set, same shapes, same dtype, and 87% of the values differ. Whether the mirror is a different fine-tune, a conversion error, or an unrelated checkpoint under a familiar name is not something this memo can tell, and nothing here says how well it decodes. What the comparison does establish is narrower and sufficient: a loader keyed on filename, tensor names and shapes would accept it without a word, and every parity fixture and SSIM gate that was run against the canonical checkpoint says nothing about this one. The file format does not help: safetensors carries no checksum of its own, and a request to add one (issue 220) was closed in 2023 without a change. mlx-taef therefore pins every weight source by an immutable revision and a sha256 and refuses to load on a mismatch, and its Qwen-Image source is a re-host of the canonical file verified against that digest. Names have stopped being enough elsewhere too: a ComfyUI issue about a different, optimized preview decoder from the same repository (issue 13366) identifies the file it means by its sha256. The reproduction of the table needs one curl per file, shasum -a 256, and a six-line NumPy loop over safetensors.numpy.load_file; no GPU is involved.

6. The discipline that works

Three practices came out of the five integrations, in the order they were learned.

The first is to read the generator's source at the pinned version and never infer a contract from a sibling. Every unpack in mlx-taef names the mflux function it mirrors, and the Krea 2 kernel also records the file and the version it was read from, which is the standard the others should be held to. Where upstream exposes the inverse function, the test suite calls it as an oracle: unpack_flux1_latent is asserted exactly equal to mflux's own FluxLatentCreator.unpack_latents on an arange tensor (test), and the Qwen-Image unpack is checked against QwenLatentCreator.unpack_latents on a seeded random tensor within a 1e-5 tolerance (test). Of the two, the arange form is the stronger and the cheaper: every element is its own index, so any permutation shows up as an exact mismatch, and the Qwen test would lose nothing by adopting it.

For FLUX.2 the upstream inverse is split across Flux2LatentCreator.unpack_latents and Flux2VAE._unpatchify_latents; the v0.8.1 test predates composing the two as an oracle and pins the routing of four specific elements instead, and the figure script in section 3 is exactly the composed oracle that test should adopt. Krea 2's kernel docstring records the file paths and function names that establish the identity pack, and it was written after reading them, not after noticing that Krea 2 shares Qwen-Image's VAE.

The second is to pin weights by digest, not by name. Section 5.

The third is to climb the reuse ladder one rung at a time. The five shipped bindings and the four candidates sort into three rungs. Zero new code: Lens should preview through the FLUX.2 binding unchanged, since its loop, its layout and its VAE weights are Klein 4B's; that is a source-read verdict awaiting a validation run, not a shipped feature. A bespoke unpack on existing weights: Krea 2 today, and, if they were built, ERNIE-Image on TAEF2, Boogu on TAEF1 (its (1, 16, h/8, w/8) tensor is Krea 2's layout, not Z-Image's, and the Z-Image guard rejects it; Boogu also ships its own VAE file, so TAEF1's fidelity there would be a measurement, not an assumption), and Ideogram 4 only if its differently-hashed VAE file turns out to be FLUX.2's. New weights: FLUX.2 Klein and Qwen-Image. The rung is decided by the in-loop tensor and the normalization, never by which VAE class the model constructs.

Upstream's own history shows the contract has a runtime dimension too. QwenVAE keeps its per-channel latent mean and std as class attributes. Until mflux PR #478 (merged 2026-08-10) they were built as lazy MLX arrays at import time, which, as the PR explains, MLX 0.31 and later pin to the stream of the importing thread; any host that imports on one thread and generates on another, ComfyUI being the case reported, crashed at the first evaluation. The PR notes that Krea 2 inherited the crash the moment it started constructing QwenVAE. Reuse propagates a contract together with its defects, which is one more reason to know exactly what is being reused.

7. What transfers

Nothing above is specific to MLX or to mflux. Every framework that exposes a per-step hook hands out a tensor from inside the sampler, and the first question is which one. mflux's in_loop and Diffusers' callback_on_step_end pass the current, still-noisy working state; ComfyUI's preview callback receives both the state x and the denoised estimate x0 and decodes x0. Two tensors with the same shape, packing and normalization are still not interchangeable if one is the noisy state and the other is the model's current guess at the clean image, and a preview of the wrong one is another picture that looks plausible. In every framework the tensor's meaning, layout, spatial convention and normalization are properties of the pipeline that produced it, and the VAE it will eventually reach says nothing about them. Krea 2 makes the point on its own: Diffusers' Krea 2 pipeline runs its loop on a sequence-packed (B, seq, 64) tensor, mflux runs the same model on an unpacked (1, 16, h/8, w/8) one, and the VAE is the same in both. The Diffusers callback guide shows a preview for a 4-channel SDXL latent and says nothing about packing; the first public FLUX preview from that hook (discussion 6991) had to call the pipeline's private unpack and re-apply the VAE's scale and shift by hand.

The nearest existing answer to "what is a latent contract" is ComfyUI's latent_formats.py, a per-model object carrying channel count, spatial divisor, scale and shift, and the name of the tiny decoder to preview with. supported_models.py assigns ERNIE-Image, Ideogram 4 and Lens the same Flux2 format, and that is not an oversight. ComfyUI settles the packing question by fiat: the sampler and the preview only ever see the channel-packed grid, and each model's adapter converts to and from its own token order inside the transformer, as the Ideogram 4 adapter does with the same (B, 32, 2, 2, gh, gw) reshape this memo derives. The model-specific part of the contract lives with the model, and the shared format is a normalized boundary. That is the same discipline section 6 argues for, applied one layer down, and it is why a ComfyUI preview needs no per-model unpack while an mflux callback does: mflux hands out the transformer's own token layout. The cost is that the packing knowledge is procedural, inside each adapter, rather than declared where a reader can compare it across models, which is what the table in section 2 tries to supply.

The transferable rule is short. A latent contract is what the tensor represents, plus layout, normalization and spatial convention, read from the generator's source at a pinned version, and matched against the input domain the decoder in hand was trained on. Which VAE class the generator constructs settles none of that, and weight identity is a hash or it is an assumption.
