Qwen-Image Mixed Precision on a 32 GB Mac

Denis Ineshin · 2026-07-24

A case study from mlx-teacache's Qwen-Image showcase: diagnosing a visual artifact in a uniform 4-bit build and removing it for about 1.9 GiB of additional MLX allocation

Qwen-Image has about 20 billion parameters. Its bf16 weights alone need roughly 40 GiB, so a 32 GB Mac calls for lower precision. Our first baseline, mflux with quantize=4, produced a portrait with a cracked skin texture. Changes to resolution, schedule, prompt suffix, VAE settings, and guidance did not remove it. A mixed-precision recipe did. It protected a small set of layers and added about 1.9 GiB to peak MLX allocation. This paper documents that one-prompt, one-seed result and does not claim a general Qwen-Image sensitivity map.

Evidence scope

• Model: Qwen-Image, a multimodal diffusion transformer (MMDiT) for text-to-image generation (technical report, arXiv:2508.02324), running through mflux on Apple Silicon.
• Machine: Apple M1 Max with 32 GB of unified memory.
• Project context: the investigation took place in June 2026 during the mlx-teacache Qwen-Image integration. The public variant page, v0.9.0 changelog, and comparison page record the outcome.
• Evidence: the 512×512 values are source-reported observations. The public benchmark artifact also records the 768×768 mixed-build peak. We did not rerun either experiment for this paper.
• Scope: the recipe changes model construction, not TeaCache. mlx-teacache neither builds nor quantizes models. Its comparison images merely exposed the problem.

1. The symptom

We constructed mflux with quantize=4, which applies uniform 4-bit affine quantization to each eligible module. The test portrait showed fine cracks across the skin, worst near the center. The pattern appeared with the official 50-step CFG recipe and with shorter schedules. At 2× crop, it looks reticulated, almost like dried mud rather than ordinary image grain.

The problem first appeared in a TeaCache comparison, so TeaCache was the first suspect. Vanilla and wrapped generation on the same build showed the same reticulation. We therefore ran the remaining experiments with vanilla mflux and treated model construction as the source.

2. The hypotheses that did not survive

Several simpler explanations fit the symptom. We tested them directly or checked them against the official implementation before changing quantization:

The scheduler and VAE checks used official Qwen-Image source, not only generated images. Both had plausible community theories behind them, but neither matched the implementation. The uniform-q4 baseline still left one obvious variable untouched: layer-level weight precision.

3. Why quantization was the credible suspect

Prior work shows that low-bit quantization does not affect every part of a diffusion transformer equally. Mixed-precision methods respond by spending more bits on the parts they find most sensitive. That gave us a plausible direction for the next build.

Position and conditioning paths can be sensitive

Qua²SeDiMo (AAAI 2025, arXiv:2412.14628) builds per-layer sensitivity maps for diffusion denoisers. It reports that "the final output layer of DiT models are more sensitive to quantization than their U-Net counterparts." Its analysis also gives the timestep-embedding block a high-sensitivity signature. SVDQuant (ICLR 2025, arXiv:2411.05007), a 4-bit method for FLUX-class models, keeps the inputs of the adaptive-normalization linear layers at 16 bits rather than quantizing them with everything else.

Block position appears in two other sources. SQ-DM (arXiv:2501.15448) states the block-position case directly. It says that "only the first and last few blocks are generally more sensitive to quantization." It then keeps those blocks at MXINT8 and uses 4-bit precision elsewhere. TreeQ (arXiv:2512.06353), a December 2025 preprint on mixed-precision search for diffusion transformers, treats keeping "the embedding and final layers ... in full precision" as the shared baseline of every method it compares.

For MMDiT block roles, Unraveling MMDiT Blocks (arXiv:2601.02211) is a training-free analysis rather than a quantization study. It finds that early blocks carry semantic structure while later blocks render fine detail. That result is consistent with protecting the edge blocks.

The observed texture resembles reported low-bit failures

PTQ4DiT (NeurIPS 2024, arXiv:2405.16005) describes an outlier-driven mechanism. It locates the error in "channels with significantly high absolute values" rather than spreading it uniformly. TreeQ reports losses in fine-grained, high-frequency detail and structured local features. Its spatial-feature metrics deteriorate even while global fidelity metrics stay reasonable. A reticulated skin texture on an otherwise coherent portrait resembles that failure class, although this study has no higher-precision reference that would establish which output is more faithful.

Community builders reached a similar position-protection design for Qwen-Image. city96's Qwen-Image GGUF builds keep the first and last layer at high precision in their lower-bit variants. The model card describes this as new dynamic quantization logic. QuantStack's Qwen-Image GGUF conversions ship the same K-quant family for Qwen-Image.

The evidence does not transfer cleanly to this case. Some methods differentiate precision by operation type rather than block position. HQ-DiT (arXiv:2405.19751) applies FP4 to every fully-connected layer in every block, so position protection is an established convention, not a settled law.

Much of the sensitivity evidence also concerns joint weight-and-activation quantization (W4A4/W4A8), not the weight-only 4-bit setup used here. Both regimes protect similar layers, but applying that convention to weight-only quantization remains an assumption. None of this proves that uniform q4 causes this artifact on this model. We found no peer-reviewed, Qwen-Image-specific quantization-sensitivity study published by July 2026. The literature made quantization worth testing, so the next experiment changed the model build.

4. The recipe

mlx.nn.quantize accepts a class_predicate callable. The callable receives each module's path and instance. It can return:

• False to keep the module at model precision, here bf16;
• True to use the requested default precision, here 4-bit; or
• a parameter dict such as {"group_size": 64, "bits": 8} to select another precision.

mflux routes model construction through QwenWeightDefinition.quantization_predicate, which quantizes every quantizable module uniformly when the caller requests quantization (return hasattr(module, "to_quantized")). mflux itself defaults quantize to None; uniform q4 is produced only when the caller selects quantize=4. Overriding the predicate before constructing that model yields mixed precision with no changes to mflux itself.

Qwen-Image has 60 transformer blocks. The recipe assigns precision as follows:

At load time the build reported 6 modules kept in bf16, 168 quantized to 8-bit, and 672 to 4-bit. Analogous work informed the bf16 set. img_in and txt_in are the embeddings; proj_out is the final projection. time_text_embed and norm_out sit on the timestep and output-normalization paths. The cited studies do not establish that these specific Qwen-Image modules are sensitive under weight-only quantization. The construction snippet is adapted from the recipe shipped in the public variant documentation:

from mflux.models.qwen.weights.qwen_weight_definition import QwenWeightDefinition
from mflux.models.qwen.variants.txt2img.qwen_image import QwenImage
from mflux.models.common.config.model_config import ModelConfig

_PROTECT = set(range(6)) | set(range(54, 60))           # first 6 + last 6 of 60 blocks -> q8
_BF16 = ("img_in", "txt_in", "time_text_embed", "proj_out", "norm_out")  # -> bf16

def _mixed(path, module):
    if not hasattr(module, "to_quantized"):
        return False
    if any(path == p or path.startswith(p + ".") for p in _BF16):
        return False                                    # keep bf16
    if path.startswith("transformer_blocks."):
        idx = int(path.split(".")[1])
        if idx in _PROTECT:
            return {"group_size": 64, "bits": 8}        # q8
    return True                                         # default q4

_original = QwenWeightDefinition.__dict__["quantization_predicate"]
QwenWeightDefinition.quantization_predicate = staticmethod(_mixed)
try:
    flux = QwenImage(quantize=4, model_config=ModelConfig.qwen_image())
finally:
    QwenWeightDefinition.quantization_predicate = _original

This mechanism has a practical caveat. It monkeypatches a class attribute because mflux 0.17.5 offers no per-instance way to inject a predicate into QwenImage construction. The finally block restores the original predicate after construction. During construction, however, the override remains process-global. Another thread must not construct a Qwen model at the same time. The hook is also fragile across mflux refactors, so a native mflux option would be safer than this snippet.

5. Results

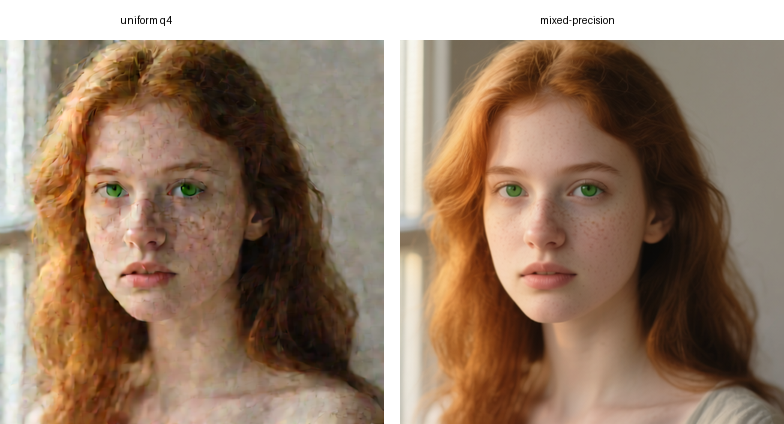

The 512×512 experiment kept the generation inputs fixed and changed the construction predicate. It used mflux 0.17.5, seed 42, 50 steps, and guidance=4.0 on the 32 GB M1 Max. The exact portrait prompt and MLX version were not retained, which limits reproduction of this pair.

The 512² peaks and visual comparison are source-reported observations. The repository's committed benchmark artifacts cover the separate 768×768 recipe discussed below.

The project's separate 768×768 showcase used the same mixed predicate. That build completed at a 30.42 GiB peak MLX allocation, measured as mx.get_peak_memory() / 1024**3. The uniform-q4 figure is source-reported at roughly 28.5 GiB. The visual improvement is also source-reported, but no public uniform-q4/mixed image pair supports it at 768×768.

The public 768×768 benchmark used mflux 0.17.5, 50 steps, guidance=4.0, seed 42, and the portrait prompt printed in its committed report. Its memory metric covers MLX allocations, not total process or system memory. Subtracting it from 32 GB would not measure system-memory headroom.

A simple weight calculation explains the pressure. At about 20 billion parameters, 8-bit weights need roughly 20 GiB and bf16 weights roughly 40 GiB. The text encoder, VAE, activations, and quantization metadata need additional memory. We did not measure either full-precision alternative.

The mixed recipe instead protects twelve of sixty blocks at 8-bit and a handful of modules at bf16. It added about 1.9 GiB to the reported uniform-q4 peak and completed on the test machine. No precision sweep established that the recipe is unique or minimal.

The TeaCache gate coefficients shipped for Qwen-Image were calibrated on the stock uniform-q4 build. They transfer to the mixed-precision build without recalibration: the project's threshold sweep on the mixed build showed the same graceful skip ramp at high structural similarity (SSIM 0.987 at the default threshold) documented on the variant page. That is an empirical transfer result; the study did not measure how far the mixed recipe moved the latent trajectory.

The wrapper also reproduced each base build's visible behavior. This separated the model-construction effect from the cache behavior.

6. Scope and limitations

The study is narrow, so the claims need the following limits:

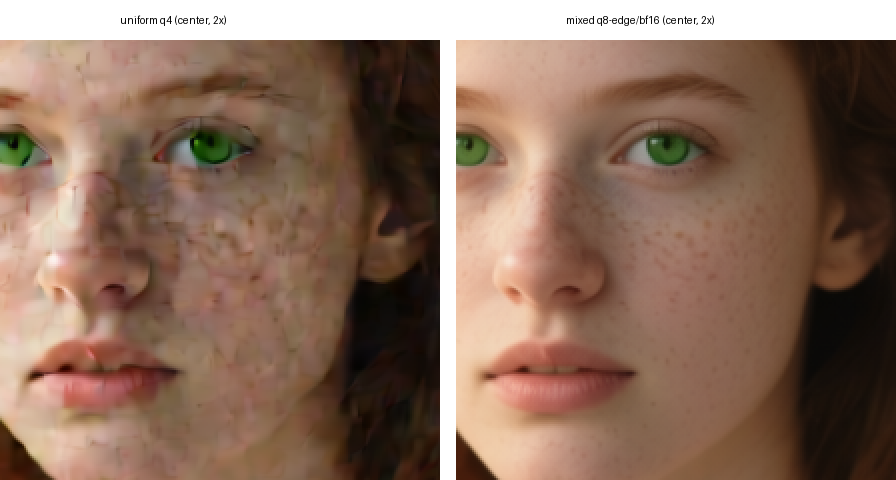

• The public before/after comparison is a single controlled 512² pair from one prompt, one seed, and one M1 Max. The reticulation's visibility was consistent across the resolutions and step counts tested, but no prompt sweep, seed sweep, or second machine backs the result. The exact 512² prompt text and MLX version were not retained; the separate 768² run has a public recipe and measurement artifact, but no public uniform/mixed visual pair.
• "Largely cleared" is a visual judgment of the rendered portraits, not a perceptual metric. No full-precision reference, FID, LPIPS, rater study, or seed sweep establishes that the preferred image is more faithful to the model's intended distribution.
• The first-six-plus-last-six recipe, with bf16 embeddings and output projection, was the first configuration that worked. Prior work informed that choice. The study did not remove protections one at a time, so the set may not be minimal. It also did not measure a per-layer Qwen-Image sensitivity profile.
• The controlled comparison shows that the quantization recipe causes the visual difference. It does not show which protected layer matters most. Fewer 8-bit blocks might be enough.
• The memory numbers are source-reported. The 512² measurement method was not retained. The public 768² figure is peak MLX allocation, not total process or system memory. None of the numbers was re-measured for this paper.

7. Lessons

Treat uniform quantization as a baseline

With quantize=4, mflux treated the transformer's 846 quantizable modules identically. Analogous literature and community builds motivated a concentrated protection set. In this case it cost about 1.9 GiB, roughly 7% of the reported uniform-q4 peak, and produced the author's preferred result for the tested portrait.

Check cheap hypotheses in source

Two of the seven hypotheses, scheduler shift and VAE constants, had plausible community theories attached. Both were settled by comparing the port's constants against the official release, which is faster and more conclusive than generating test images against a moving visual target.

Separate wrapper behavior from model behavior

The step-skipping cache was the first suspect because it was the newest component. One comparison exonerated it: vanilla and wrapped output shared the visible reticulation. The harness makes this vanilla-versus-wrapped check routine and inexpensive.

Put the recipe where users will find it

The mixed-precision recipe lives outside the library's scope, but its documentation is where a 32 GB Qwen-Image user will find the problem. The variant page carries the construction snippet and says plainly that stock q4 is grainy on this model.

Claims and status

In short, this case supports a narrow result. For one 512×512 image, the mixed build removed the cracks seen with uniform q4. The same build also ran at 768×768 on the test Mac. The study does not tell us whether the image is closer to full precision. It also does not identify the smallest working protection set or show that the same layers matter for other prompts.

References and source notes

• Qwen-Image model card (Apache-2.0; ~20B; official 50-step / true_cfg_scale=4.0 recipe) and the Qwen-Image Technical Report, arXiv:2508.02324.
• mflux: MLX port used for all generations; pinned-source links in the text reference tag v.0.17.5.
• mlx.nn.quantize documentation (the class_predicate protocol the recipe relies on).
• Diffusion-transformer quantization sensitivity and mixed precision: Qua²SeDiMo, AAAI 2025, arXiv:2412.14628; SVDQuant, ICLR 2025, arXiv:2411.05007; PTQ4DiT, NeurIPS 2024, arXiv:2405.16005; SQ-DM, arXiv:2501.15448; TreeQ, arXiv:2512.06353 (preprint); ViDiT-Q, ICLR 2025, arXiv:2406.02540; MixDiT, IEEE LCA 2025, arXiv:2504.08398; HQ-DiT, arXiv:2405.19751 (the uniform op-type counterpoint); Unraveling MMDiT Blocks, arXiv:2601.02211 (block-role analysis, cited for early-block semantics rather than quantization evidence).
• Community mixed-precision practice on this exact model: city96/Qwen-Image-gguf and QuantStack/Qwen-Image-GGUF.
• Project documentation used as documentary cross-checks: README, CHANGELOG, COMPARISON, and the qwen-image variant page.

Prepared 2026-07-20. Last updated 2026-07-24. Denis Ineshin.
